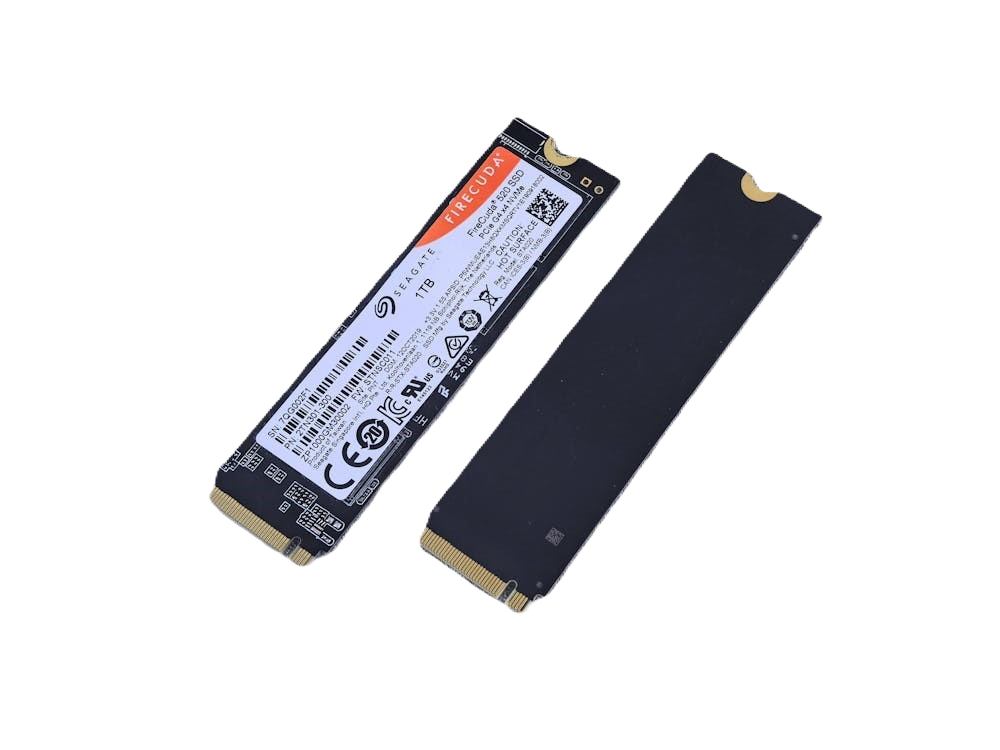

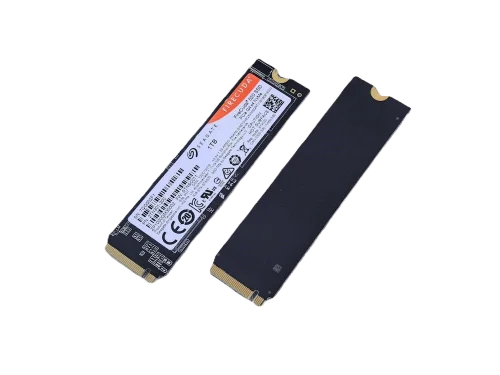

SSD Recovery

Solid state drive (SSD) technology is the newest storage media for laptops,
notebooks, netbooks, tablets, and is even used in large scale enterprise
storage equipment.

Solid State Drive (SSD) Forensics

Solid State Drives pose a variety of interesting challenges for computer forensics in comparison with traditional rotating magnetic platter hard drives. Most SSD devices are based on flash memory; some have battery backed SRAM or DRAM with a flash backing store.

Flash has a number of key properties that complicate its use in computer storage systems and subsequent forensic analysis:

Internally, flash memory is not divided into the traditional 512 byte blocks, but instead is in pages of 2KiB, 4KiB, or larger, although it is still presented to the host computer in blocks

Whilst hard drives can be written in a single pass, flash memory pages must be erased (in whole) before they can be rewritten.

Rewriting a block at the operating system level does not necessarily rewrite the same page in the flash memory due to the controller remapping data to spread wear or avoid failing pages

Each page can be erased and rewritten a limited number of times – typically 1000 to 10,000. (Hard drive sectors, in contrast, can be rewritten millions of times or more ).

Flash data is often encrypted on the drive, and can be ``erased`` by telling the controller to forget the old key and generate a new one, as well as marking all blocks as unused

The controller in a flash SSD is significantly more complex in the number of tasks it has to perform in comparison to a magnetic rotating drive, with the following features:

Wear leveling – that is, spreading the writes to flash out among different sectors. leveling is typically done with a flash translation layer that maps logical sectors (or LBAs) to physical pages. Most FTLs are contained within the SSD device and are not accessible to end users.

read/modify/relocate+write - if the controller allows rewriting of a partial flash page, it read the entire page, modify the sector that is being written, and write the new flash page in a new/fresh location which has been previously erased. the old pre-modification data's page is then queued for erase.

Solid State Drive Brands

Intel®

SanDisk®

Western Digital Solid State Storage

OCZ® Technology

Patriot Memory®

Samsung®

Micron®

Kingston Technology®

STEC®

PNY Technologies®

Crucial®

Transcend®

Other*

Unlike hard disk drives, Solid State Drives store data in flash memory chips. This eliminates data loss due to mechanical or hardware damage, such as head crashes or motor defects.

Research shows low awareness of the technical complexity of SSD can jeopardize data availability. Data loss occurs with SSD storage devices because they are susceptible to damage to the flash chips and how data is stored

on them. Here are some common failures with SSD drives:

Electronics component failure

Data corruption due to power surges or failures

Controller chip failure

Damage to printed circuit boards

Flash cell degradation

Damage to connectors

Additionally, SSD storage devices are susceptible to traditional data loss events such as human error, computer viruses, natural disasters, and software/programme corruption.

In addition to recovering data from the common sources of SSD failures, the Microserve Data Recovery team can overcome technical challenges that are unique to SSD and flash technology, such as decoding complex SSD data structures for individual brands, specialised controller chips, and many other SSD specific issues.

Microserve has developed data reconstruction programs that will identify, separate and reassemble your SSD memory so that your files or data will be able to be extracted.
